77Ghz Microwave Radar Sensor Anti-Collision Warning System

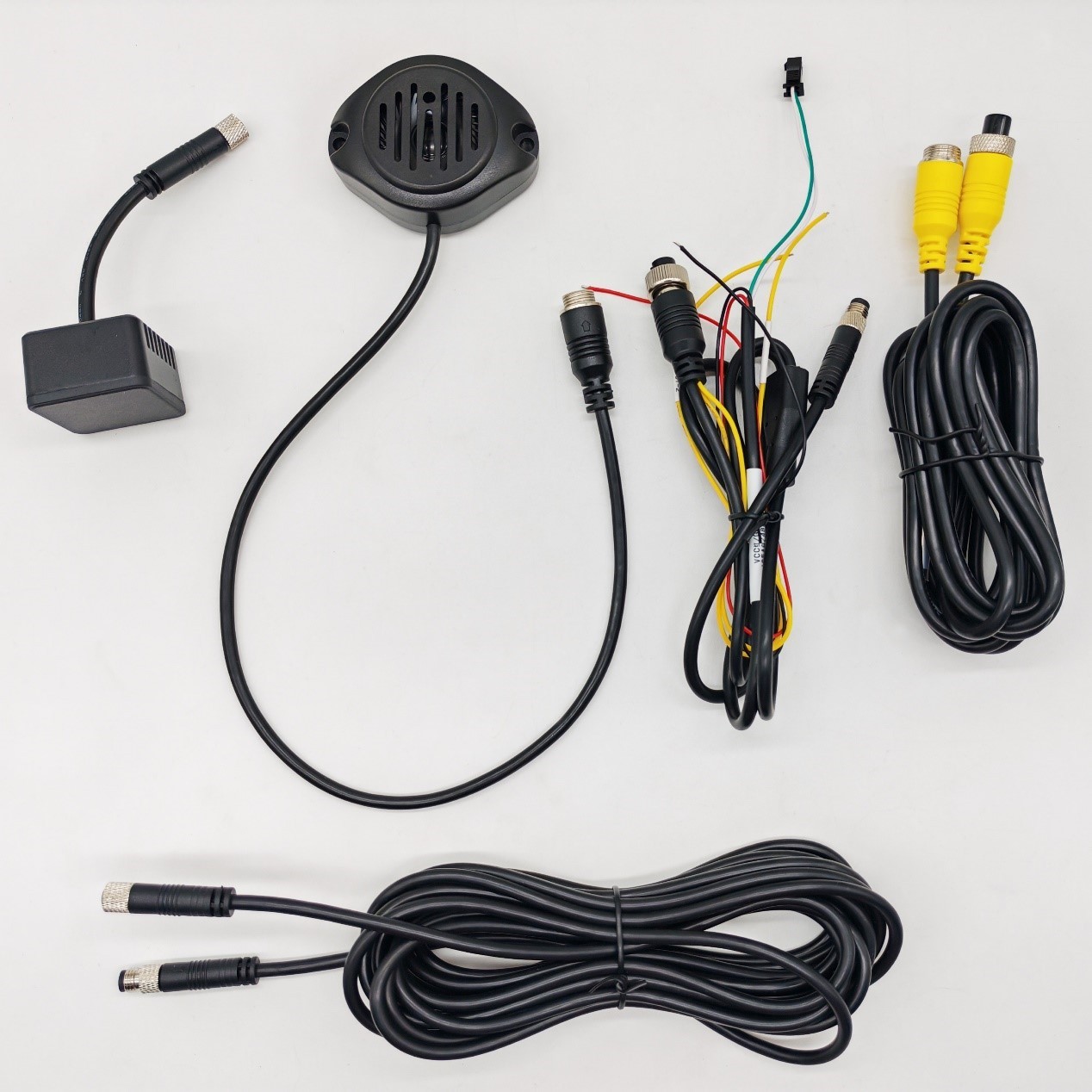

The TR600 is a 77Ghz millimeter-wave radar obstacle avoidance and warning terminal, consisting of a 77Ghz millimeter-wave medium-short-range obstacle avoidance radar, a voice announcer, and a connection cable.
I. Core Advantage
1. Intelligent Detection: 0.2-20 meters (configurable)
2. Wide-angle coverage: 120° horizontal and pitch coverage
3. High Accuracy: Distance resolution of 0.2m, speed resolution of 0.36m/s
II. Dual-Level Voice Alerts
1. Level 1 Warning: "Please slow down."
2. Level 2 Warning: "Please brake."
III. Robust Performance
1. IP67 waterproof rating, operates in extreme temperatures (-40°C to +85°C).
2. Low power consumption (2.5W) and 9–24V wide voltage input.
IV. Flexible Integration
1. Supports CAN/485 communication and high-level signal outputs for external devices (alarms, relays, etc.)
2. Configurable via host computer software for customized warning zones. The universal external communication interface is convenient for integration with a host computer or other sensor modules.
